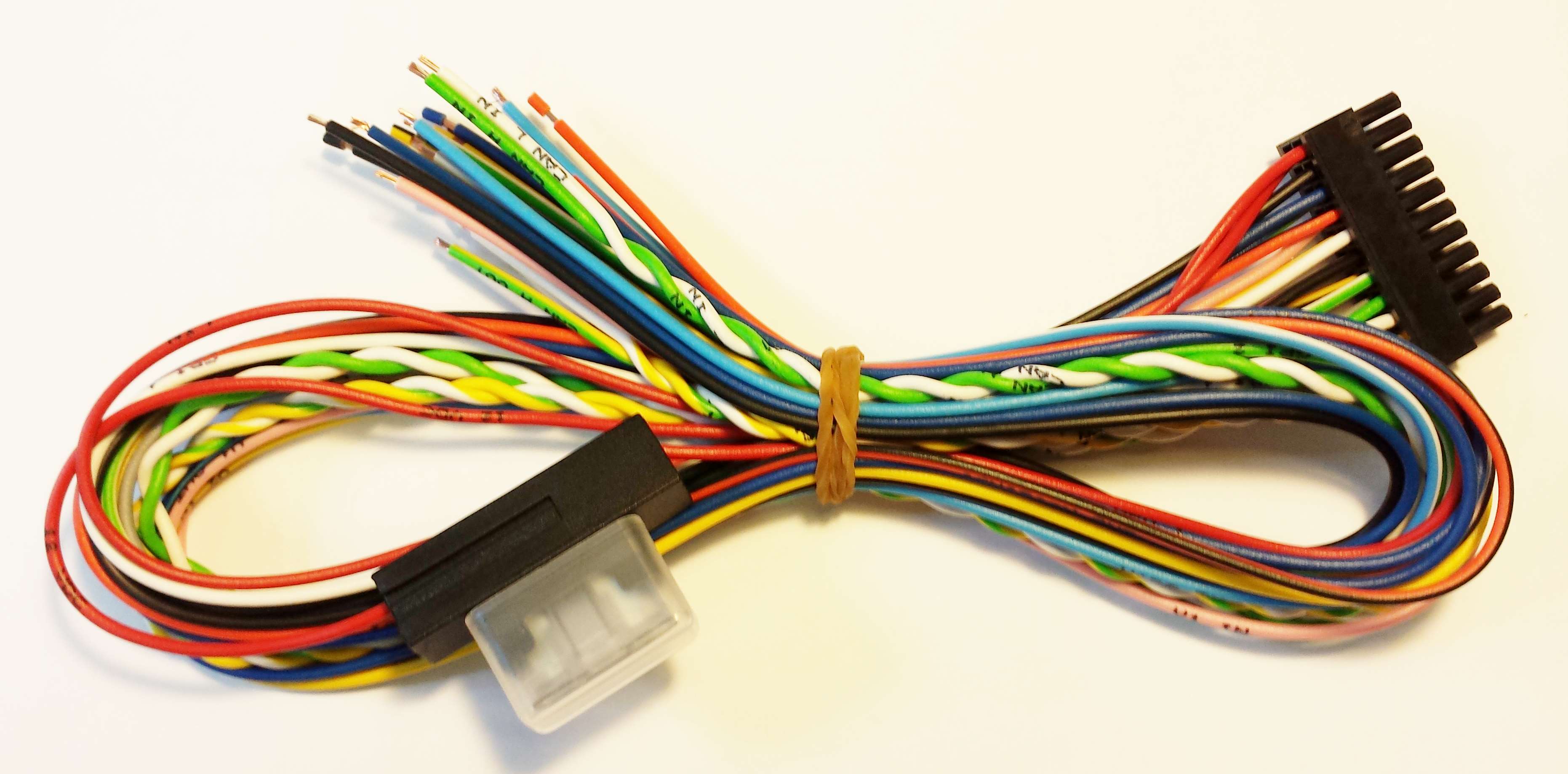

Main Harness

Here a list of main connector harnesses, avalable for Carberry.

Individual Wires Harness

Used to connect Carberry to any vehicle.
Cut and strip vehicle wires and join with Carberry Individual Wires Harness.

Plug&Play Harnesses

Used to connect Carberry to specific vehicle in series mode.
